E-MM® MEDIA

MEDIA FILTRATION

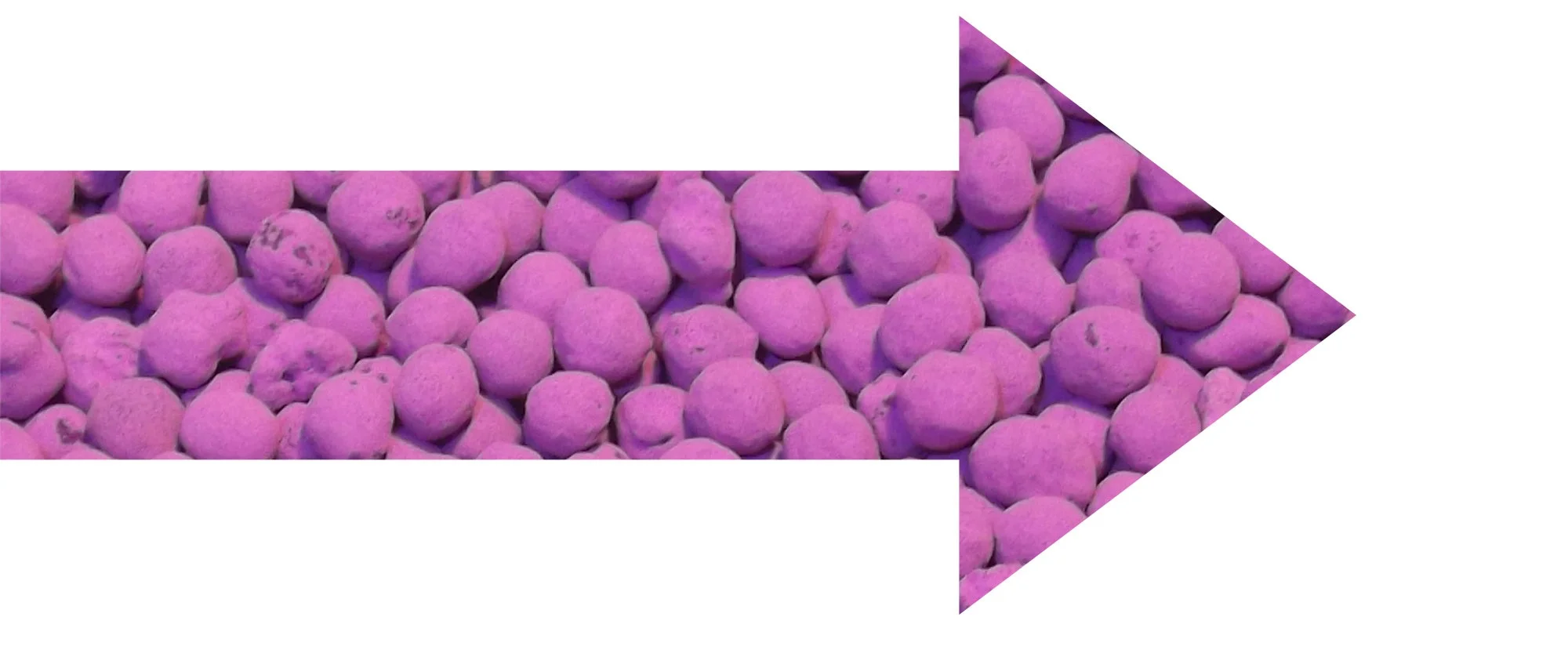

CORE-Aire’s Extract MULTI-MIX® media is a filtration system that allows continuous purification of corrosive, odorous and toxic contaminants within an industrial and commercial environment.

The media combines the absorption properties of activated carbon and the oxidation properties of chemically impregnated alumina.

Using this combination, we are able to filter out microscopic odors and contaminants.


Combined properties :

Apparent Density:                                           0.625 gm/cc (39 lb./ft3 )

Pressure Drop @ 50 fpm (0.25 m/s):           1.45 in. of water/ft. of bed

PERFORMANCE GUIDELINES

Circul-Aire’s Extract MULTI-MIX® media functions under the following conditions:

• Temperature: -20°C to 46°C (-4°F to 115°F)

• Humidity: 10% to 95% RH

• Airflow: Ranging from less than 25 cfm (42.5 m3 /hr.) to over 100,000 cfm (169,920 m3 /hr.), with velocities from 60 fpm (0.305 m/s) to 500 fpm (2.54 m/s)
